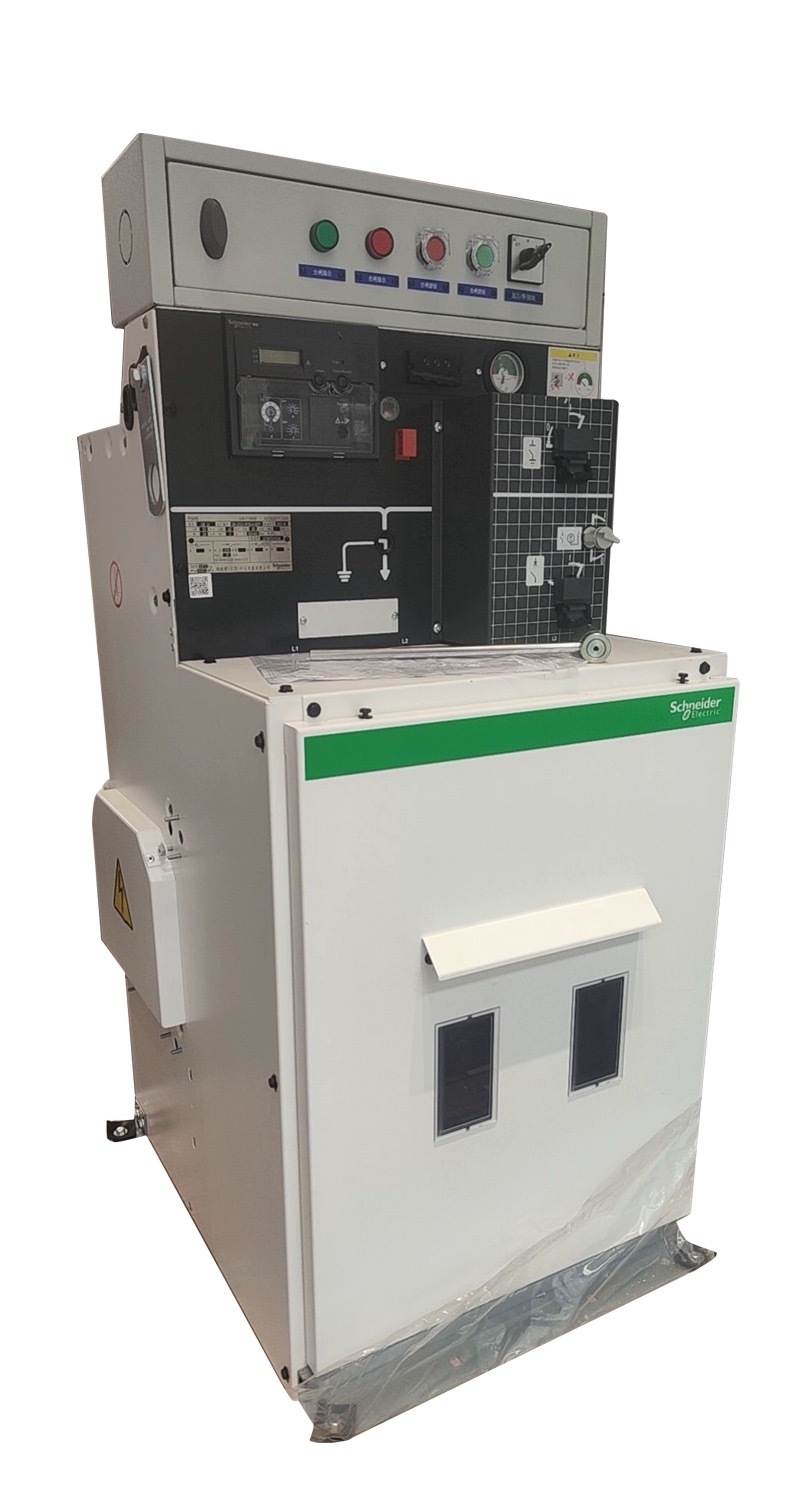

The RM6 can be adapted to meet all Medium Voltage power distribution needs, up to 24 kV.
The RM6 is a compact unit combining all MV functional units to enable connection, supply and protection of transformers on an open ring or radial network:
. by a fuse-switch combination, up to 2000 kVA
. by a circuit breaker with protection unit, up to 8000 kVA.
The switchgear and busbars are enclosed in a gas-tight chamber, filled with SF6 and sealed for life.

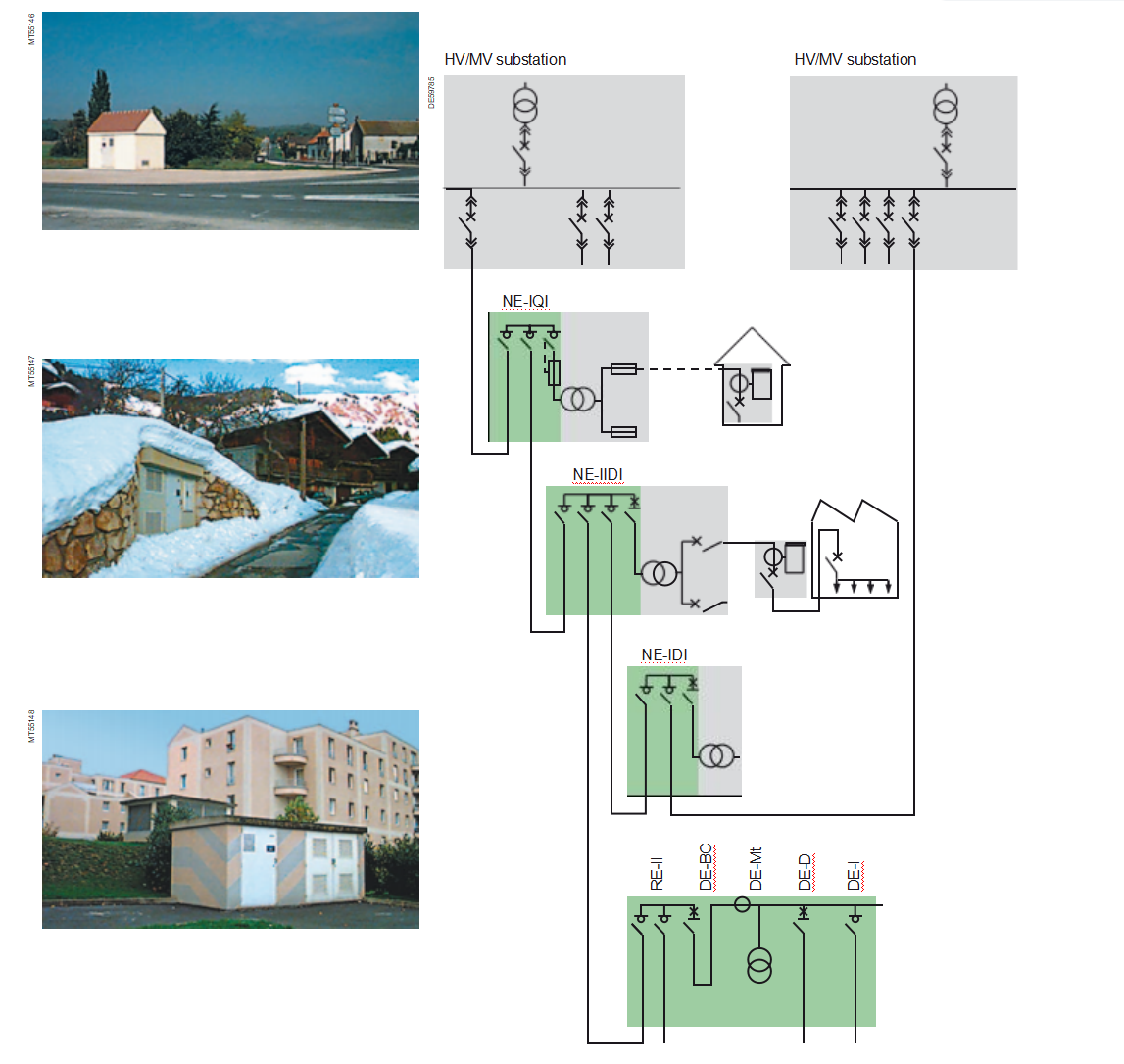

Operating a distribution network sometimes requires switching points in addition to the HV/MV substations, in order to limit the effect of a fault on the network.
A complete range, enabling you to equip MV network points, and enhance
electrical power dependability.
The RM6 offers a choice of solutions to make 2, 3 or 4 directional
connections
. with line protection by 630 Acircuit breakers
. with network switching by switch-disconnectors
. with integrated power supply telecontrol devices.
